Dental Implant Products: A Comprehensive Introduction for the Prosthetic Industry

Dental implant products are precision-manufactured restorative systems that serve as artificial tooth roots, providing a stable and durable foundation for prosthetic teeth. Within the denture industry, these products encompass a complete ecosystem of implant fixtures, abutments, attachments, and prosthetic components. They are engineered to restore oral function and aesthetics for patients with partial or complete tooth loss, supporting everything from single crowns to full-arch implant-supported dentures.

1. Product Categories by Implant Platform

Dental implant products are generally classified by their restorative platform and connection type, which directly influences the denture fabrication process:

· Bone-Level Implants: Placed flush with the alveolar bone crest. These products require a separate abutment to create the transmucosal pathway, giving the dental technician complete freedom to design the emergence profile of the final prosthesis. Ideal for custom, screw-retained, or cement-retained crowns and bridges.
· Tissue-Level Implants: Feature a smooth, machined collar that extends through the soft tissue. The prosthetic connection sits above the gum line, simplifying impression taking and denture fabrication. These are popular for removable overdenture applications and posterior single crowns.
· One-Piece Implants: The fixture and abutment are a single unit. These are often narrow-diameter products used in minimally invasive overdenture protocols, where the ball or Locator top is already integrated into the implant.

2. Material Composition Options

The denture industry offers implant products in two primary biocompatible materials, each with distinct product characteristics:

· Titanium (CP Ti Grade 4 and Ti-6Al-4V ELI Alloy): The industry gold standard. Titanium implants provide exceptional strength, fatigue resistance, and proven long-term osseointegration. They are available in a vast range of diameters and lengths, suitable for every prosthetic indication. The alloy version allows for thinner post walls in narrow implants without compromising durability.
· Zirconia (Y-TZP Ceramic): A metal-free, tooth-colored alternative. Zirconia implants are prized for their aesthetic superiority, low plaque affinity, and hypoallergenic nature. They are an excellent product choice for patients with metal sensitivities or thin gingival biotypes, particularly in the anterior aesthetic zone. Available as one-piece or two-piece designs.

3. Surface Engineering and Design Features

Modern implant products incorporate advanced surface technologies and geometric designs to enhance the integration process, which is critical for the long-term success of the attached denture:

· Surface Treatment: Most products feature a moderately rough, micro-roughened surface to accelerate bone healing. Common technologies include SLA (Sandblasted, Large-grit, Acid-etched) and anodization. Some products offer a hydrophilic, chemically activated surface that attracts blood and accelerates early osseointegration, enabling faster loading protocols.
· Thread Design: Aggressive, self-tapping threads with variable pitch and depth provide high primary stability. Tapered body designs mimic natural root form and are ideal for soft bone or immediate extraction sites.
· Connection Interface: Internal conical connections (Morse Taper) with a friction-fit seal provide excellent microbial barrier properties and long-term mechanical stability. A platform-switched design, where the abutment is narrower than the implant platform, is a key product attribute that helps preserve crestal bone and supports soft tissue aesthetics.

4. Abutment and Attachment Products for Denture Fabrication

A crucial segment of the implant product line is the range of abutments and attachments that connect the implant fixture to the denture:

· Stock Abutments: Pre-fabricated, straight or angled titanium or zirconia abutments available in multiple gingival heights and angulations for cement-retained prostheses.
· Custom Abutments: Patient-specific, CAD/CAM-milled abutments (titanium, zirconia, or hybrid) that allow perfect emergence profile management for the optimal prosthetic contour.
· Multi-Unit Abutments: Angled screw-retained bases used to correct implant trajectory and create a common path of insertion for full-arch fixed bridges.
· Overdenture Attachments:
  · Locator®-type Attachments: Low-profile, resilient stud attachments with interchangeable color-coded retention inserts. They allow angular compensation and are the most widely used product for implant-retained overdentures.
  · Ball Attachments: A spherical abutment that snaps into a metal or plastic housing embedded in the denture base.
  · Bar Attachments: A customized, milled metal bar splinting multiple implants, onto which the denture clips via precision attachments. This product provides maximum support and stability.

5. Prosthetic Components and Digital Workflow Integration

The modern denture industry relies on a comprehensive range of implant components that facilitate both conventional and digital workflows:

· Impression Copings: Pick-up (open-tray) and transfer (closed-tray) posts used to accurately capture the implant position.
· Implant Analogs/Replicas: Laboratory components that precisely replicate the implant platform in a working cast, ensuring an exact fit of the final denture.
· Titanium Bases (Ti-Bases): Bonding interfaces for CAD/CAM-milled ceramic or composite restorations. They combine a precision-machined implant connection with a bonding surface for the prosthetic superstructure.
· Scan Bodies: Digital analogs used with intraoral or lab scanners to transfer the 3D implant position into CAD software, enabling a fully digital design and manufacturing workflow for implant prostheses.
· Healing Abutments: Temporary posts that shape the soft tissue during the osseointegration phase, creating an ideal emergence profile for the definitive restoration.

6. Prosthetic Solutions and Clinical Indications

From a product application standpoint, dental implant systems are categorized into complete solution sets for specific denture types:

· Single-Tooth and Multiple-Tooth Fixed Bridges: Use bone-level or tissue-level implants with cement-retained or screw-retained crowns.
· Implant-Supported Overdentures: Use 2–4 implants fitted with Locator, ball, or bar attachments to securely retain a removable full denture. This product category dramatically improves chewing function and comfort over conventional dentures.

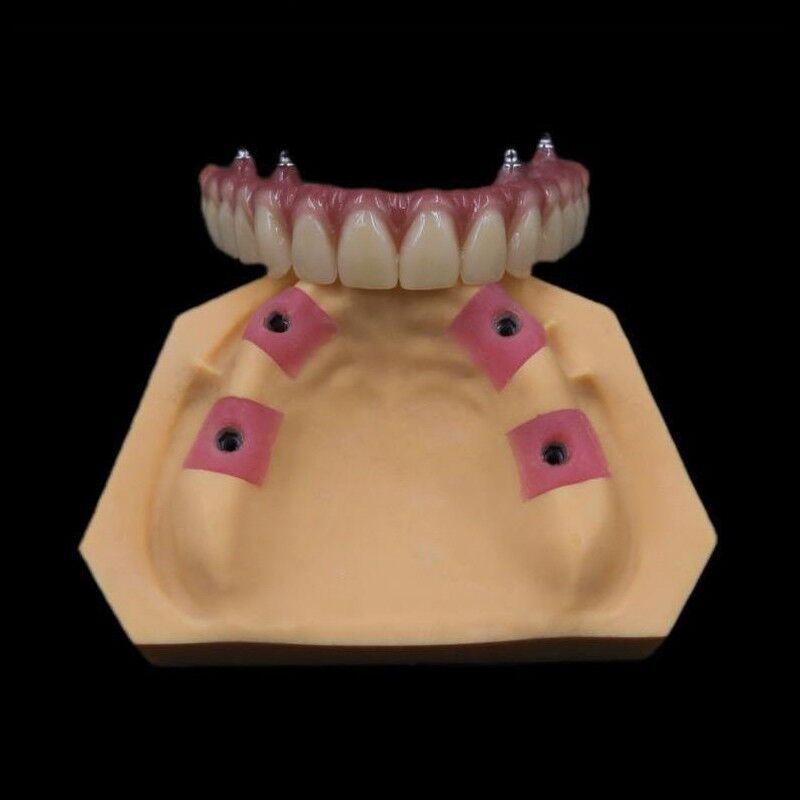

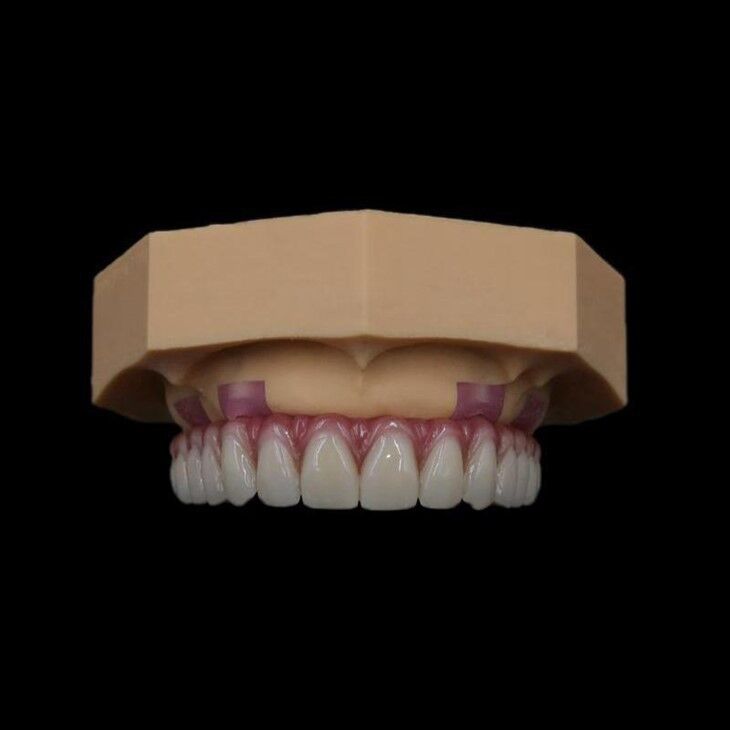

· Full-Arch Fixed Hybrid Prostheses (e.g., All-on-4® Concept): Uses 4–6 implants, often with angled multi-unit abutments, to support a screw-retained, full-arch fixed prosthesis with a titanium framework and acrylic teeth. Designed for immediate loading and same-day teeth.

7. Quality Assurance and Traceability

Implant products for the prosthetic industry are manufactured under strict quality management systems. Key product attributes include:

· Biocompatibility Certification: Materials meet ISO 10993 and ASTM F67/F136 standards.
· Sterile Packaging: Implants are supplied in double-blister or vial packaging, sterilized by gamma irradiation, with the implant tip and connection protected.
· UDI and Lot Traceability: Each implant and component carries a unique device identification number and lot code for complete traceability from manufacturing to patient file.
· Shelf Life: Clearly labeled expiration dates ensure surface integrity and sterility.

In summary, dental implant products in the prosthodontic and denture industry represent a fully integrated, highly engineered system of fixtures, abutments, attachments, and digital components. They are designed to deliver predictable, long-term osseointegration and serve as versatile foundations for every type of tooth replacement, from single-unit restorations to the most complex full-arch prosthetic rehabilitations.
