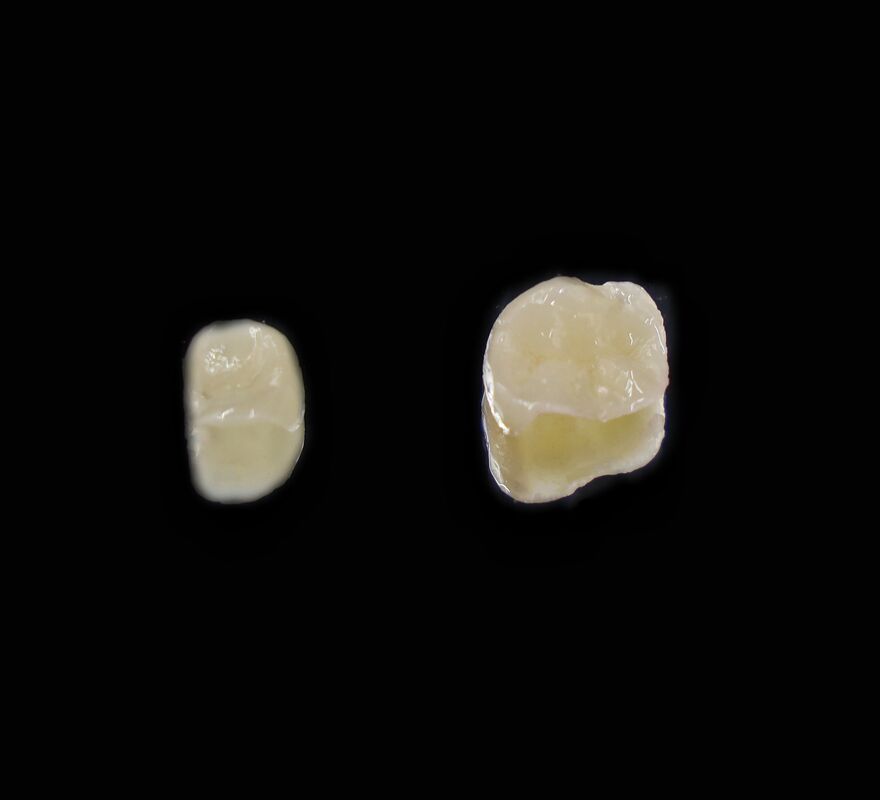

Dental Laboratory China Emax Inlay - Lithium Disilicate CE Marked Heat-Pressed Dental Inlay
China Dental Lab Emax Inlay
Emax Inlay: Introduction to Lithium Disilicate Glass-Ceramic Restorations
In the dental prosthetics industry, the Emax inlay — part of the IPS e.max® family — has established itself as a premier restorative solution for posterior teeth requiring conservative, aesthetic, and durable treatment. As one of the most widely used lithium disilicate glass-ceramic materials in dentistry today, it occupies a unique position between direct composite fillings and full-coverage crowns.
What Is an Emax Inlay?
Emax is the widely recognized brand name for IPS e.max®, a lithium disilicate glass-ceramic material developed and manufactured by Ivoclar Vivadent. Since its launch in 2005, the material has accumulated over 15 years of clinical validation and remains a trusted choice among dentists and dental technicians worldwide.
The inlay is a type of indirect restoration that fits within the cusps of a posterior tooth — unlike an onlay, which covers one or more cusps. Emax inlays are fabricated in dental laboratories or chairside using CAD/CAM technology, then bonded adhesively into the prepared cavity, offering a tooth-colored, metal-free alternative that preserves maximum natural tooth structure.
Key Features and Material Properties
Superior Aesthetics
One of the defining attributes of Emax inlays is their ability to mimic natural dentition. The material exhibits excellent translucency and light-diffusing properties, allowing the restoration to blend seamlessly with surrounding tooth structure. IPS e.max is available in multiple translucency levels and a broad range of shades, enabling precise shade matching for each clinical situation.
High Strength and Durability
Lithium disilicate glass-ceramic delivers impressive mechanical properties. The flexural strength of IPS e.max CAD reaches approximately 530 MPa, while IPS e.max Press achieves around 470 MPa. With fracture toughness of approximately 2.0-2.5 MPa*m¹/², the material provides reliable resistance to fracture under masticatory forces.
Excellent Biocompatibility and Wear Compatibility
Emax is entirely metal-free, eliminating the risk of metal allergies and improving biocompatibility. The material's hardness and wear characteristics are engineered to closely match those of natural tooth enamel, meaning it wears at a rate comparable to natural teeth rather than abrading opposing dentition.
Precision of Fit
When fabricated through digital CAD/CAM workflows, Emax inlays achieve exceptional marginal and internal fit. Studies demonstrate that CAD/CAM subtractive manufacturing methods produce inlays with superior marginal adaptation compared to conventional or 3D-printed fabrication techniques.
Fabrication Methods
Emax inlays can be produced through two primary pathways:
- IPS e.max Press — The pressed ceramic technique, where a wax pattern is invested and lithium disilicate ingots are heat-pressed into the mold at 915-930°C. Long-term clinical studies report a survival rate of 95.3% for IPS e.max Press restorations over periods of up to 16.9 years.
- IPS e.max CAD — The CAD/CAM approach, where restorations are milled from pre-crystallized lithium disilicate blocks, then crystallized in a furnace. IPS e.max CAD is the best-selling glass-ceramic block worldwide.
Clinical Performance and Longevity
Long-term clinical evidence strongly supports the use of Emax inlays. In a landmark 10.9-year clinical study, pressed monolithic Emax lithium disilicate partial-coverage restorations demonstrated a 10-year estimated cumulative survival rate of 95.6%, with inlays specifically achieving a 93.9% survival rate at 9.9 years. The annual failure risk for inlays was estimated at just 0.38% per year.
Indications and Cementation
Emax inlays are indicated for conservative posterior restorations where full-coverage crowns are not clinically necessary but direct composite fillings would provide insufficient durability.
Regarding cementation, adhesive bonding is mandatory for inlays and onlays. The recommended protocol involves:
- Etching the internal surface of the restoration with 4-5% hydrofluoric acid for 20-25 seconds
- Applying a pure silane primer to the etched surface
- Using a dual-cure resin cement with adhesive bonding technique on the tooth preparation
Emax Inlay vs. Competing Materials
| Material |
Flexural Strength |
Aesthetics |
Best Application |
| Emax (Lithium Disilicate) |
~470-530 MPa |
Excellent translucency |
Conservative inlays/onlays, anterior crowns, veneers |
| Zirconia (4Y) |
~1,200 MPa |
Moderate translucency |
High-load posterior crowns, bridges |
| Gold Alloy |
High |
Metallic appearance |
Posterior restorations with heavy occlusal forces |
Among ceramic materials, Emax demonstrates the longest documented survival rates — 90% at 10 years — compared to zirconia (88% at 5 years), though the choice of material ultimately depends on occlusal forces, aesthetic requirements, and tooth location.
To conclude, the Emax inlay stands as an established, evidence-based restorative option that merges natural-looking aesthetics with robust mechanical properties and dependable long-term outcomes. Its flexible manufacturing pathways, exacting marginal fit, and minimally invasive preparation approach have positioned it among the most sought-after solutions in contemporary dental prosthetics.
