Chinese Dental Lab Emax Inlay - Lithium Disilicate CE Marked Heat-Pressed Dental Inlay
China Dental Lab Emax Inlay

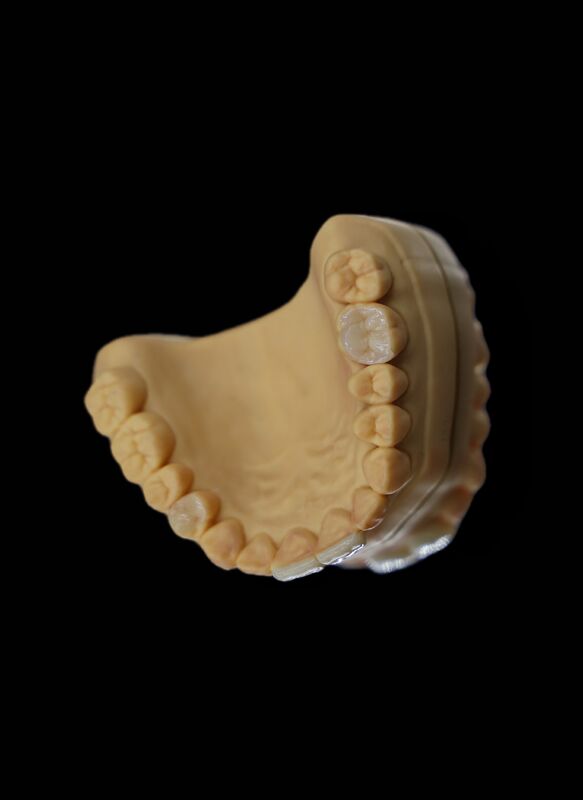

Emax Inlay: A Guide to Lithium Disilicate Glass-Ceramic Restorations
In the world of prosthetic dentistry, the Emax inlay — belonging to the IPS e.max® range — has become a top-tier treatment option for back teeth needing tooth-conserving, natural-looking, and resilient restorations. Representing one of today's most frequently selected lithium disilicate materials, it uniquely bridges the gap between direct composite restorations and complete crown coverage.
What Is an Emax Inlay?
The brand Emax is the widely used shorthand for IPS e.max®, a lithium disilicate glass-ceramic engineered and manufactured by Ivoclar Vivadent, headquartered in Schaan, Liechtenstein. Since its debut in 2005, this material has undergone more than 15 years of clinical scrutiny and remains a trusted restoration material among clinicians and technicians around the world.
The inlay represents an indirect restoration confined within the cusp boundaries of a posterior tooth — distinguishing it from an onlay, which envelops one or more cusps. Produced via dental laboratory processes or chairside CAD/CAM systems, Emax inlays are bonded adhesively into the cavity preparation, providing a tooth-shaded, non-metallic alternative that maximises preservation of the natural tooth structure.
Key Features and Material Properties
Superior Aesthetics
One of the defining attributes of Emax inlays is their ability to mimic natural dentition. The material exhibits excellent translucency and light-diffusing properties, allowing the restoration to blend seamlessly with surrounding tooth structure — a "chameleon effect" that is particularly valued in aesthetic dentistry. IPS e.max is available in multiple translucency levels (HT, MT, LT, MO, and Impulse) and a broad range of A-D and Bleach shades, enabling precise shade matching for each clinical situation.
High Strength and Durability
Lithium disilicate glass-ceramic delivers impressive mechanical properties. The flexural strength of IPS e.max CAD reaches approximately 530 MPa, while IPS e.max Press achieves around 470 MPa (biaxial). With fracture toughness of approximately 2.0-2.5 MPa*m¹/², the material provides reliable resistance to fracture under masticatory forces, making it suitable for both anterior and posterior applications.
Excellent Biocompatibility and Wear Compatibility
Emax is entirely metal-free, eliminating the risk of metal allergies and improving biocompatibility. Additionally, the material's hardness and wear characteristics are engineered to closely match those of natural tooth enamel, meaning it wears at a rate comparable to natural teeth rather than abrading opposing dentition.
Precision of Fit
When fabricated through digital CAD/CAM workflows, Emax inlays achieve exceptional marginal and internal fit. Studies have demonstrated that CAD/CAM subtractive manufacturing methods produce inlays with superior marginal adaptation compared to conventional or 3D-printed fabrication techniques, ensuring tight marginal seals and reducing the risk of secondary caries.
Fabrication Methods
Emax inlays can be produced through two primary pathways:
- IPS e.max Press — The pressed ceramic technique, where a wax pattern (created conventionally or digitally) is invested and lithium disilicate ingots are heat-pressed into the mold at 915-930°C. The press method is known for delivering highly precise margins and the flexibility to create polychromatic, layered restorations. Long-term clinical studies report a survival rate of 95.3% for IPS e.max Press restorations over periods of up to 16.9 years.
- IPS e.max CAD — The CAD/CAM approach, where restorations are milled from pre-crystallized ("blue-state") lithium disilicate blocks, then crystallized in a furnace (approximately 11-20 minutes depending on the system). The pre-crystallized state facilitates efficient milling with reduced tool wear. IPS e.max CAD is the best-selling glass-ceramic block worldwide.
Clinical Performance and Longevity
Long-term clinical evidence strongly supports the use of Emax inlays. In a landmark 10.9-year clinical study by Malament et al. published in the Journal of Prosthetic Dentistry (2021), pressed monolithic Emax lithium disilicate partial-coverage restorations demonstrated a 10-year estimated cumulative survival rate of 95.6%, with inlays specifically achieving a 93.9% survival rate at 9.9 years. The annual failure risk for inlays was estimated at just 0.38% per year, underscoring the material's reliability.
Additional data from the broader IPS e.max system shows 97.2% survival of posterior crowns at 10 years, and average survival rates of 95.2% over up to 15 years.
Indications and Cementation
Emax inlays are indicated for conservative posterior restorations where full-coverage crowns are not clinically necessary but direct composite fillings would provide insufficient durability — for example, large Class II restorations or MOD preparations.
Regarding cementation, adhesive bonding is mandatory for inlays and onlays. The recommended protocol involves:
- Etching the internal surface of the restoration with 4-5% hydrofluoric acid for 20-25 seconds
- Applying a pure silane primer to the etched surface
- Using a dual-cure resin cement with adhesive bonding technique on the tooth preparation.
Emax Inlay vs. Competing Materials
| Material |
Flexural Strength |
Aesthetics |
Best Application |
| Emax (Lithium Disilicate) |
~470-530 MPa |
Excellent translucency |
Conservative inlays/onlays, anterior crowns, veneers |
| Zirconia (4Y) |
~1,200 MPa |
Moderate translucency |
High-load posterior crowns, bridges |
| Gold Alloy |
High |
Metallic appearance |
Posterior restorations with heavy occlusal forces |
Among ceramic materials, Emax demonstrates the longest documented survival rates — 90% at 10 years — compared to zirconia (88% at 5 years), though the choice of material ultimately depends on occlusal forces, aesthetic requirements, and tooth location.
In summary, the Emax inlay represents a mature, scientifically validated restorative solution that combines lifelike aesthetics with high mechanical strength and proven long-term clinical performance. Its versatility in fabrication methods, precision of fit, and conservative preparation philosophy have made it one of the most popular choices in the modern dental prosthetics industry for patients seeking metal-free, tooth-colored posterior restorations.
english
français
Deutsch
Italiano
Русский
Español
português
Nederlandse
ελληνικά
日本語
한국
polski
فارسی
বাংলা
ไทย
tiếng Việt
العربية
हिन्दी
Türkçe
indonesia
